XSP-160 170 180 biological microscope
Back to products
Next product
XSP-NY biological microscope

XSP-200 biological microscope

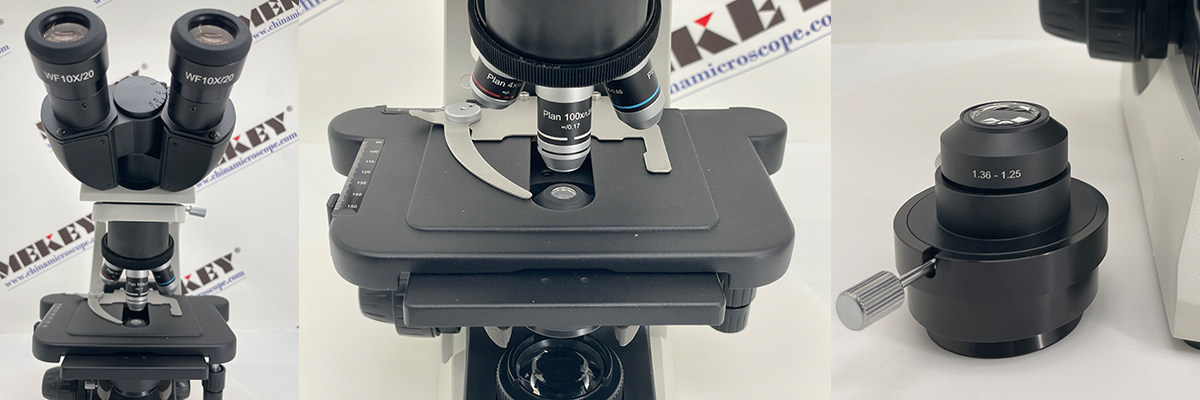

Excellent image quality with infinite optical system.

Comfortable operating with ergonomic design.

Better illumination with sliding-in centerable condenser, convenient replacement with phase contrast and dark field condenser

To keep the work area clear and to avoid interference with observation operations, the X-direction travel guide does not extend out from the side of the stage. The main and sub-scale displays are designed for easy read-out. The stage can prevent the corrosion and scratches.

ENQUIRY!
分类： , , 标签： , , ,
描述
XSP-200
Total

Magnification

 4×-1000× ●
Optical System Infinite optical system ●
Viewing Head Siedentopf binocular viewing head, inclined at 30°,360°rotatable ●
Siedentopf trinocular viewing head, inclined at 30°,360°rotatable ○
Built-in digital camera system ○
Eyepiece WF10×/20 ●
WF15×/16 ○
Objective Infinite plan achromatic objective 4×,10×,40×,100× ●
Nosepiece Backward quadruple nosepiece ●
Backward quintuple nosepiece ○
Focusing Coaxial coarse & fine adjustment, range 22mm, fine division 0.002mm ●
Stage Rectangular 216×150mm, cross travel 78×54mm,

using low-positioned X/ Y coaxial control knob

 ●
Condenser Abbe condenser NA1.25 with aperture diaphragm ●
Illumination 12V/20W Halogen lamp, brightness adjustable
S-LED Illumination, brightness adjustable ○
Optional Photo attachment, Video attachment, Polarization set, Phase contrast kit ○

Note: “●” in the table is standard attachment. “○” is optional accessories.

Design change: To keep pace with technological advances, we have reserved the right to make design modification and changes without notice.

其他信息
microscope function

Infinite, Compound, Dark filed, Polarizing, PH, fluorescent
