XTX-2 step zoom stereo microscope

XTX-1 step zoom stereo microscope

Step zoom Stereo microscope 1X/2X3X/4X/6X

Sharp stereo erect image over a wide FOV.

Upright binocular head with locked-in eyepiece.The left ocular-tube with diopter adjustment±5dp.The interpupillary distance is between 55-75mm.

V-shape inserted style objective with locked-in device ensuring easy replacement.

Pillar style stand.

CE approval.

Power supply 110V/60HZ or 220V/50HZ.

Each set packed in styrofoam box and in an inner box.Four sets in one outer carton.

A wide range of accessories for selection

Optional accessories:
Eyepiece:WF5×,WF10×,WF15×,WF20×
Objective:1×,2×,3×,4×,6×
Ø95mm White/Black Working stage
Incandescent lamp 12V10W
Digital Camera
Darkfield Attachment and Jewel Tweezer for XTX-1C.
Wooden case  or Aluminum carrying case

ENQUIRY!
分类： , , 标签： , ,
描述

SPECIFICATION

Model Eyepiece Objective Working Stage Illumination
XTX-1A WF10× 2× φ60  White/black Natural illumination
XTX-1B WF10× 2× φ60  White/black Incident illumination

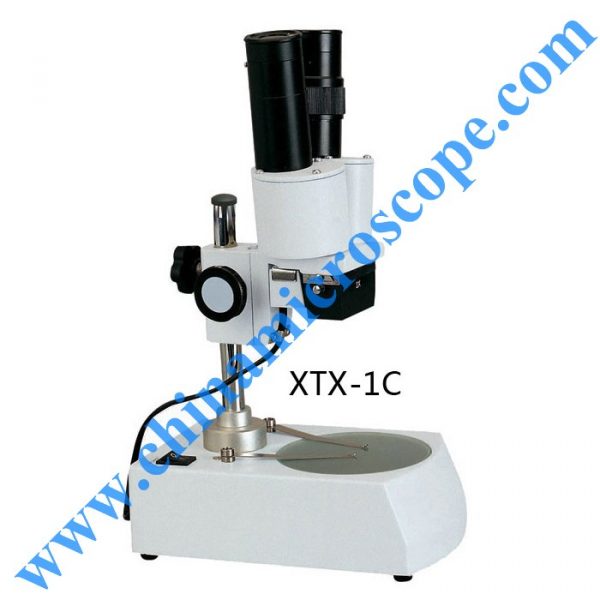

XTX-1C WF10× 2× φ95 Frosted glass Incident illumination & transmitted illumination

OPTICAL DATA

Objective Eyepiece WD
5× 10× 15× 20×
M FOV M FOV M FOV M FOV
1× 5× 20.0mm 10× 20.0mm 15× 15.0mm 20× 10.0mm 57mm
2× 10× 10.0mm 20× 10.0mm 30× 7.5mm 40× 6.5mm 80mm
3× 15× 7.0mm 30× 6.7mm 45× 5.0mm 60× 4.3mm 61mm
4× 20× 5.0mm 40× 5.0mm 60× 3.7mm 80× 3.2mm 57mm
6× 30× 4.0mm 60× 3.3mm 90× 2.5mm 120× 2.1mm 66mm
其他信息
microscope function

Compound
