MIC TECH Wireless & USB digital microscope iPad/Android/PC
Portable mobile Wi-Fi microscope MICW5

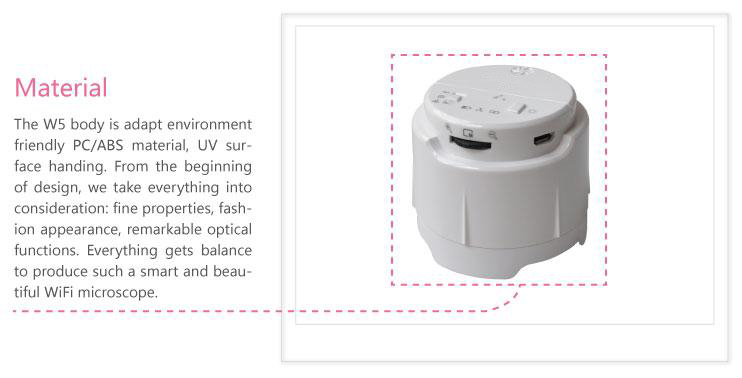

MIC TECH microscope MIC-W5 is design for Hybrid Wireless and USB interface beauty Microscope. It works on its built-in Wi-Fi module，allows up to about 10 mobile devices to watch & record images simultaneously .It can use NOT ONLY iPAD / iPHONE /Android by wireless BUT also PC windows by USB interface to capture images/video at the mean time. The handheld MIC-W5, a portable and light-weighted Wi-Fi microscope that fit in the palm of your hand, providing remarkable image on precision inspection, skin care, education, art preservation, science, you will find dozens of uses for the Wi-Fi microscope MIC-W5 with 80X magnify.
The smallest Wi-Fi microscope in the world
Remarkable Features
1) Dual purposes

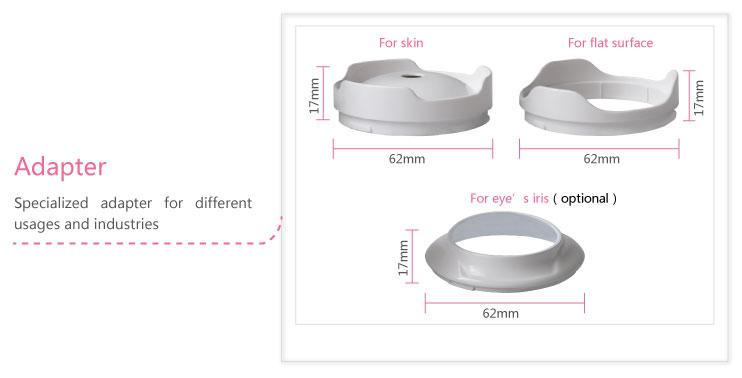

MIC-W5’s unique design comes from its two adapters for dual purposes. One adapter serves for observing uneven and flexible skin, another is for normal tiny inspections.
How to change the adapters for dual purposes?
Now it is all well setup

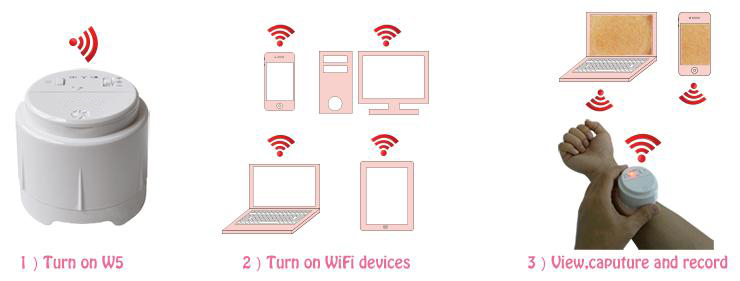

2) Dual usages: for facilitating your work, the MIC-W5 provide you two working modes: Wi-Fi and USB working modes.
MIC-W5 APPs for iOS and Android are easily and free to download online. Captured images/video can be viewed on multiple mobile devices (iPhone, iPad, Android phones, PC with Wi-Fi function, tablets )
Wired:MIC-W5 software MIC TECH capture for Windows system add more valuable functions for you. In additionally, when you are inspecting an antique/ art painting/signature/insect, distinguish fake money, you may plug MIC-W5 with normal USB wire into computer and share inspected content with your colleagues/friends/family through Skype, MSN, QQ, or other instant chatting tools.

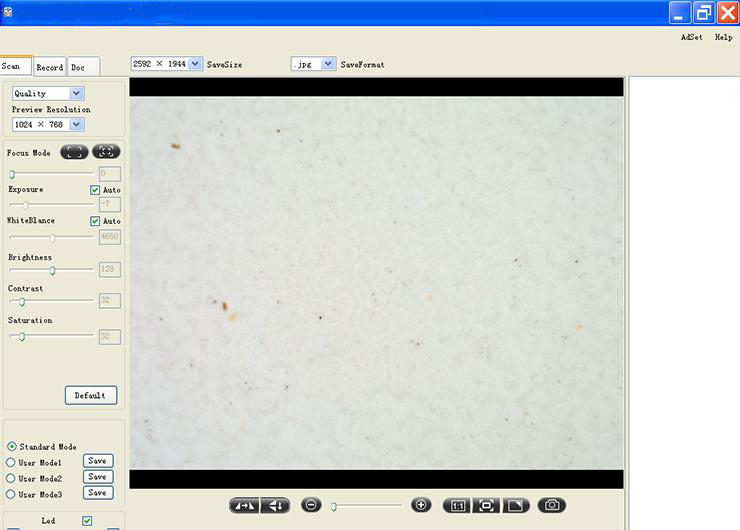

MIC TECH Capture software provides more operate experience for MIC-W5’s wired usage in Windows systems.
4) Multi-functional buttons on the operate interface
1）Different mode switch for different race people: yellow race, black race and white race
2） 6 levels brightness adjustment
3）Zoom in/out
4）Smart indicators: battery indicator, Wi-Fi working indicator, battery charging indicator

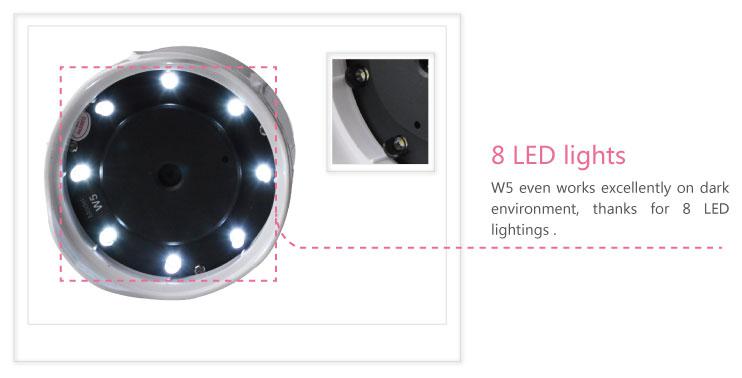

5）8 LED support MIC-W5 to WORK EVEN IN DARK environment.
6） Humanized design of BUILT-IN MICROPHONE let you record your conversation with teacher or doctor while recording the checking process video.
7）Effortless Real-time AUTO FOCUS, avoid the trouble of losing clear image while manual focusing like other Wi-Fi microscopes, it makes your work become easier.

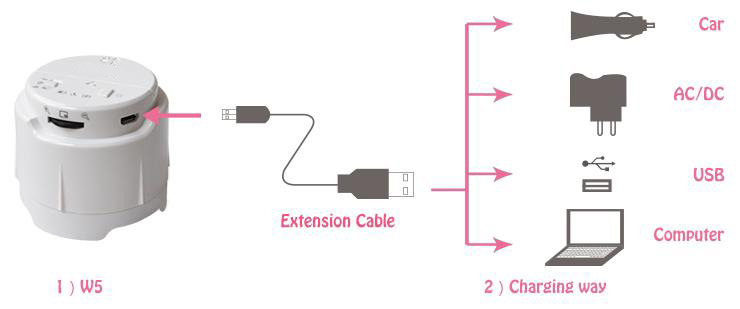

How to power MIC TECH WiFi microscope MICW5
Round-the-clock viewing/recording

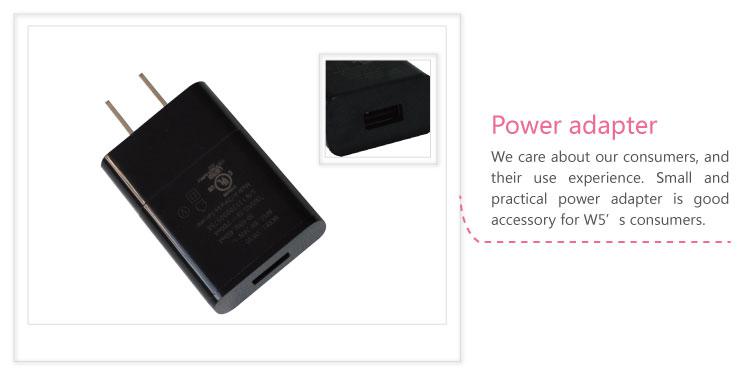

Choose from USB, car, or regular adapter power to run your MIC TECH microscope MIC-W5 all day long. Just pop your MIC-W5into the smart Wi-Fi phones/devices and you are all set for round-the clock viewing/recording.

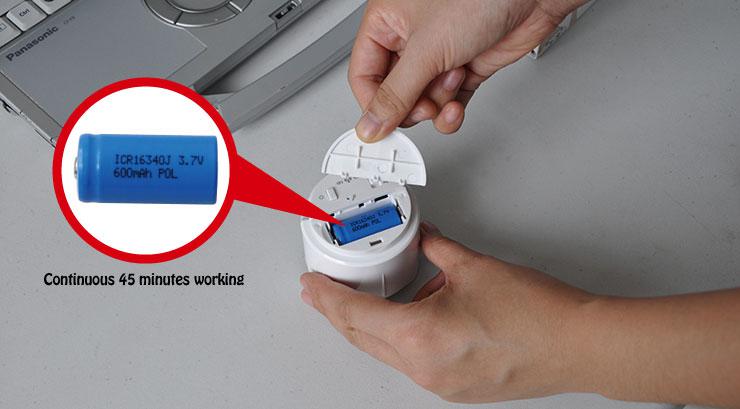

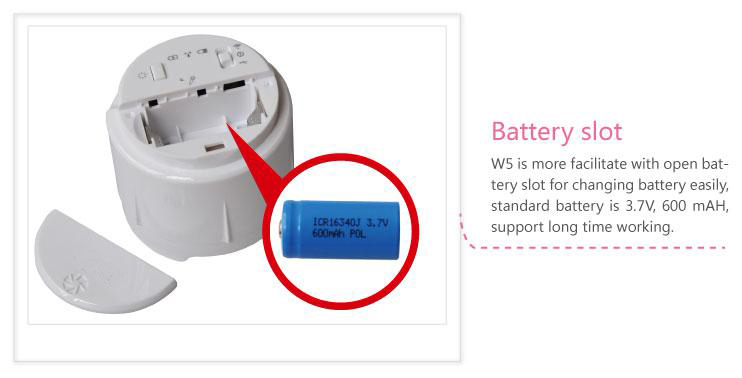

ICR Battery: after charging and battery indicator flashing as yellow, the battery can support MIC-W5 to work independently. Standard accessorized ICR battery is rechargeable and replaceable, and support once continuous 45 minutes working after fully charged.

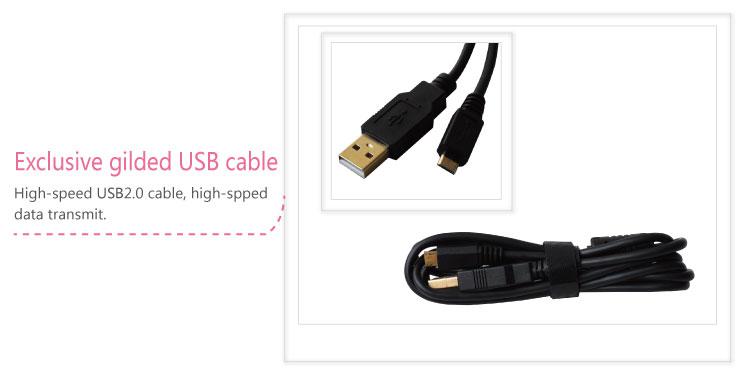

When the battery is out of power, you still can use MIC-W5 wirelessly by charging with USB cable
How far of MIC-W5 can transmit its Wi-Fi signal to smart mobile devices
50 m transmission distance in open space without any block or obstruction.
12 m transmission distance in space with block, such as wall or budding.
Application Scenes
Training and improving children’s abilities in observation, make their hobbies abundantly.
To see a world in a grain of sand, And a heaven in a wild flower, Hold infinity in the palm of your hand, And eternity in an hour.” Auguries of Innocence”-William Blake

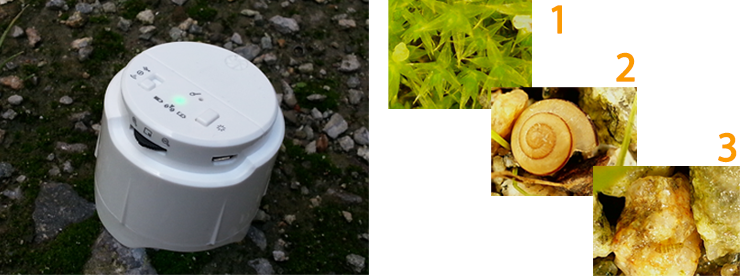

1. Moss under MIC TECH Wi-Fi microscope MICW5
2. A little snail under MIC TECH Wi-Fi microscope MICW5
3. Small stones under MIC TECH Wi-Fi microscope MICW5
| Size/Net weight | φ62(Diameter)x54mm(Height)/ 90g |
| Working modes | A.USB 2.0 Micro Interface B.WIFI Working mode |
| Sensor type | 5.0M true color 1/4”CMOS |
| 5.0M pixels | High resolution, scan tiny clear |
| Illumination | Built in 8LEDs |
| Speed Shooting | 1 second |
| Focus Mode | Single Automatic focus/Continue Automatic focus |
| magnification | 80X(Display in 14” Size Screen) |
| Operation software in Windows &Microsoft |
MIC TECH Capture, Simple operation,easy to use |
| Resolution | Max: 2592 x 1944( 5,038,848 Mega Pixel) |
| A/D switch | 12-bit on chip,10-bit to pc |
| Image format Frame rate | YUV output: 640×480@30fps,800×600@20fps,1280×960@10fps,1280×720@10fps,2592×1944@5fps MJPG output： 640×480@40fps,800×600@40fps,1280×960@40fps,1280×720@40fps,2592×1944@15fps |
| Exposure way | Wide range auto/manual exposure |
| White balance | Automatic White Balance/Automatic Exposure |
| Focus mode | Continuous auto-focus; single auto-focus; manual fine adjust |
| Snapshot control API | native C/C++, C#, Direct Show, UVC |
| Observe methods | Still picture and video in real time |
| Spectral region | 380-650nm (with IR-cut Filter) |
| Wireless parameters |
wireless protocol: IEEE 802.11b/g/n frequency range:2.4000–2.4835GHz transmit bandwidth :150Mbps |
| Power supply | Separable and rechargeable LR123 lithiumbattery(3.6 V 600 mAh); DC 5V USB power supply by PC;External DC 5V 1.5A adapter |
| OS requirement | Microsoft® Windows® XP / Vista / 7 / 8 (32 & 64 bit) MAC OS X (wireless working mode) IOS5/IOS6 (wireless working mode) |
| Hardware requirement |
CPU: equivalent to Intel Core2 1.6GHz or higher Memory :2GB or higher USB port :USB2.0 High-speed port DVD-ROM(required when installing software) |
