WD110mm(DXT1.25-DXT3)Telecentric microscope
Back to products
Next product
WD110mm(DXT4-DXT8)Telecentric microscope

WD110mm(DXT03-DXT1)Telecentric microscope

Fixed zoom: 0.3X,0.5X, 0.8X,1X,WD110MM

The depth of field is the value of parsing images if you user 1/2″ CCD camera and monitor for level 320 line
(imaging surface concessional confusion circumference:40)
Resolution is the theory resolute on of wavelength in 550nm

ENQUIRY!
分类： , , 标签： , , , , , , ,
描述

WD110mm(DXT03-DXT1)Telecentric microscope

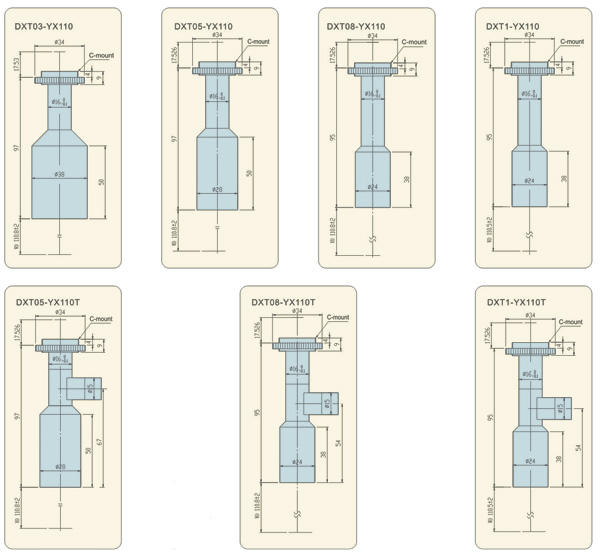

Model Magnification W.D mm Depth of field Resolution TV Largest compatible CCD Mount
DXT03-YX110 0.3x 110.8mm 8.8mm 22.3 µm <0.15% 1/2″ C Mount
DXT05-YX110/110T 0.5X 110.8mm 4mm 16.5 µm <0.1% 1/2″ C Mount
DXT08-YX110/110T 0.8x 110.8mm 1.5mm 10.5 µm <0.15% 1/2″ C Mount
DXT1-YX110/110T 1X 110.5mm 1.25mm 10 µm <0.1% 1/2″ C Mount
其他信息
microscope function

Compound
