Series specifications
Optical system | Infinity color corrected optical system | |
Viewing
head |
Efficient infinity binocular head, 30°-60° elevation adjustable; 360° rotatable;
interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable. |
|
30° inclined binocular head; 360° rotatable; interpupillary adjustable distance: 54-75mm;
diopter +/-5 adjustable. |
||
30° inclined trinocular head, splitting ratio R:T=50:50; 360° rotatable; interpupillary
adjustable distance: 54-75mm; diopter +/-5 adjustable. |
||
30° inclined trinocular head (special for fluorescence), splitting ratio R:T=100:0 or 0:100;
360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable. |
||

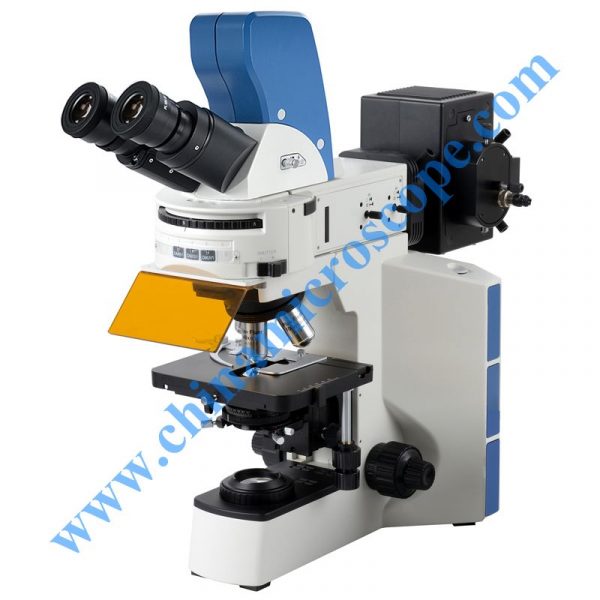

30° inclined digital binocular head; 360° rotatable; interpupillary adjustable distance:
54-75mm; diopter +/-5 adjustable. |
||
Eyepiece | High eye-point wide field plan eyepiece PL10x22mm, reticle can be assembled. | |
High eye-point wide field plan eyepiece PL15x16mm | ||
Objective | Infinity plan achromatic objectives (2X,4X,10X,20X,40X,100X) | |
Infinity plan phase contrast objectives (10X,20X,40X,100X) | ||
Infinity plan semi-achromatic fluorescence objectives (4X,10X,20X,40X,100X) | ||
Nosepiece | Revolving quadruple nosepiece/ quintuple nosepiece | |
Body | Coaxial focus system with upper limited and tension adjustment;
coarse range: 30mm; fine precision: 0.002mm; focus height adjustable. |
|
Stage | 175x145mm double layer mechanical stage, rotatable; with special fabrication processing,
anti-corrosive and anti-friction; X,Y moving hand wheel in right or left hand; moving range: 76x50mm, precision : 0.1mm. |
|
187x166mm double layer mechanical stage, moving range: 80x50mm, precision: 0.1mm. | ||
Condenser | N.A.0.9 swing-out type achromatic condenser;N.A.1.2/0.22 swing-out type achromatic
condenser;N.A.1.25 quintuple phase contrast condenser;N.A.0.9 dry dark field condenser;N.A.1.25 oil dark field condenser. |
|
Reflected
fluorescence illumination system |
XYRFLP reflected fluorescence Koehler illumination with alterable field diaphragm and
aperture diaphragm (center adjustable). |
|
XYLH100HG mercury lamp house with viewfinder; the center and focal length of
viewfinder &filament are adjustable. |
||
U2-RFLT100 digital power control box of mercury lamp, wide voltage: 90-245VAC. | ||
Imported OSRAM 100W DC mercury bulb; disc fluorescence filers:
UV/VB/G; 30ND25-RFLP attenuation plate. |
||
Transmitted
illumination system |
Wide voltage: 100-240V, built-in transmitted Koehler illumination;
6V/30W halogen, pre-centered, intensity adjustable. |
|
Polarizing kit | Analyzer 360° rotatable; polarizer and analyzer can be out of light path. | |
Filter | Yellow, green, blue, neutral filter | |
Light splitting device | R:T=70:30 or 100:0, special 1x CTV | |
Camera adapter | 0.5xCTV, 0.67xCTV, 1xCTV |
