MTS step zoom stereo microscope

ZTX-1020 step zoom stereo microscope

Step zoom Stereo microscope 1X/2X3X/4X

Sharp stereo erect image over a wide field of view.

45°inclined and 360°rotatable binocular head with locked-in eyepiece,The left ocular-tube with diopter adjustment ±5dp,The interpupillary distance is between 55-75mm.

Three kind of 90°rotatable objective for selection:1×/2×,1×/3×,2×/4×

ZTX-10/ZTX-20 series supplied with pillar style stand;ZTX-10-C series supplied with fan base and pillar stand,ZTX-20-W series supplied with arm curved style stand.

CE approval.

Power supply 110V/60Hz or 220V/50Hz.

Each set packed in styrofoam box and in an inner box.Two or Four sets in one outer carton.The outer measurement is ZTX-10/20:85×35×40cm ZTX-20-W:50×37×48cm.

A wide range of accessories for selection.

ENQUIRY!
分类： , , 标签： , ,
描述

Illumination:
L1:Incident reflected halogen light 12V 10W;Transmitted halogen light 12V 10W,Brightness is adjustable.
L2:Both incident and transmitted light with LED 1W,Brightness is adjustable.

SPECIFICATION

Model Eyepiece Objective Working Stage Illumination

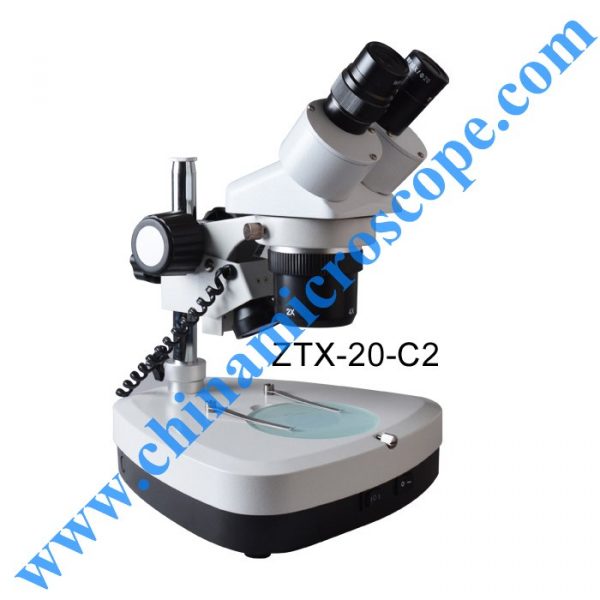

ZTX-20-C2 WF10× 1×-2×
1×-3×
2×-4×		 Frosted glass LED illumination

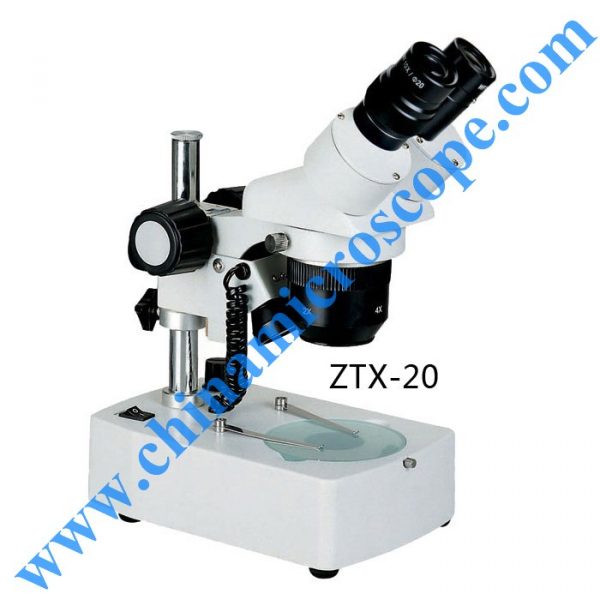

ZTX-20 WF10× Frosted glass Halogen Lamp illumination
ZTX-10-C1 WF10× White/black Natural illumination
ZTX-10 WF10× White/black Natural illumination
Optional accessories：0.5×、0.75x、1.5×、2× Auxiliary  Objective;WF5×、WF10×、WF15x、WF20× Eyepiece;Ring light、Darkfield Attachment、.Jewel Tweezer

OPTICAL DATA

Eyepiece Objective Auxiliary Objective
0.5× 0.75× 1.5× 2.0×
Objective FOV WD FOV WD FOV WD FOV WD FOV WD
WF5× 1× 20 109 37.5 120 24 75 14 40 11 25
2× 10 99 19 120 12 75 7 40 5.5 25
3× 7 84 12.5 120 8 75 4.5 40 3.5 25
4× 5 81 19 120 6 75 3.5 40 2.8 25
WF10× 1× 20 109 37.5 120 25 75 14 40 11 25
2× 10 99 19 120 12 75 7 40 5.5 25
3× 7 84 12.5 120 8 75 4.5 40 3.5 25
4× 5 81 19 120 6 75 3.5 40 3 25
WF15× 1× 15 109 30 120 18 75 10 40 8 25
2× 7.5 99 15 120 9 75 5 40 4 25
3× 5 84 9.5 120 6 75 3.5 40 3 25
4× 3.8 81 7 120 4.5 75 2.8 40 2 25
WF20× 1× 10 109 19 120 12 75 7 40 5.5 25
2× 5 99 10 120 6 75 3.5 40 2.5 25
3× 3.5 84 6.2 120 4 75 2.4 40 2 25
4× 2.5 81 4.7 120 3 75 2 40 1.5 25
其他信息
microscope function

Compound
用户评价 (0)

评价

目前还没有评价

成为第一个“ZTX-1020 step zoom stereo microscope” 的评价者

您的电子邮箱地址不会被公开。 必填项已用 * 标注

Shipping & Delivery

EX-WORK price

ALL PRICE MIC TECH QUOTED IS EX-WORK PRICE.

OTHER PRICE INCLUDING SHIPPING WILL BE QUOTED UPON REQUEST.

FAS CPT CIP FCA FOB CFR CIF DPT DIP DDP

  • ALL TERMS OF SHIPPING IS NEGOTIABLE WITH MIC TECH
  • ALL SHIPPING METHODS IS JUST ON YOUR REQUEST
  • YOUR SATISFACTION IS OUR GOAL
