STX step zoom stereo microscope

DTX step zoom stereo microscope

Step zoom Stereo microscope 1X/2X/3X/4X

1.Sharp stereo erect image over a wide field of view.
2.45°inclined and 360°rotatable binocular head with locked-in eyepiece.Both ocular-tube with diopter adjustment ±5dp.The interpupillary distance is between 55-75mm.
3.Three kind of 90° rotatable objectives for selection:1×/2×,1×/3×,2×/4×
4.Power supply 100V～240V
5.CE approval

ENQUIRY!
分类： , , 标签： , ,
描述

Illumination:
L1:Incident reflected halogen light 12V 10W;Transmitted halogen light 12V 10W,Brightness is adjustable.
L2:Both incident and transmitted light with LED 1W,Brightness is adjustable.
Each set packed in styrofoam box and in one outer carton.

SPECIFICATION

Model Eyepiece Objective Up & Down Mechanism Base/Working Stage
DTX10-W SWF10× 1×-2×
1×-3×
2×-4×		 Arm curved style Fan-shape plain base with Ø95mmWhite/Black Working stage
DTX-10 Pillar style Fan-shape plain base with Ø95mmWhite/Black Working stage
DTX20-W Arm curved style Fan-shape plain base with Ø95mm Frosted Glass
DTX-20 Pillar style Fan-shape plain base with Ø95mm Frosted Glass

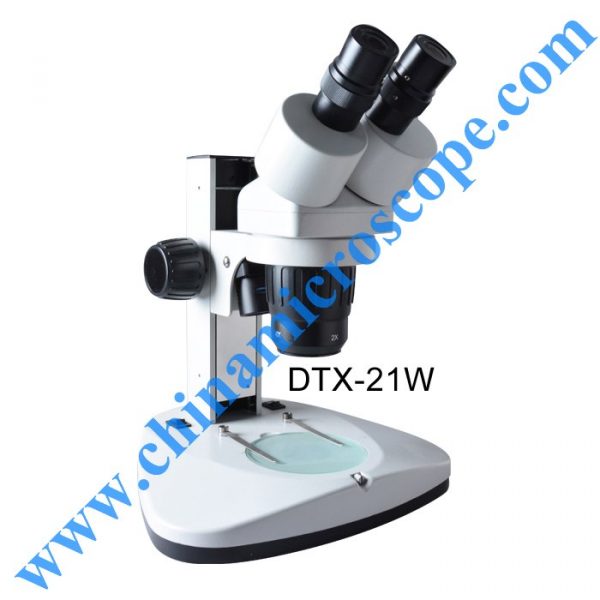

DTX-21W Arm curved style Fan-shape plain base with Ø95mm Frosted Glass

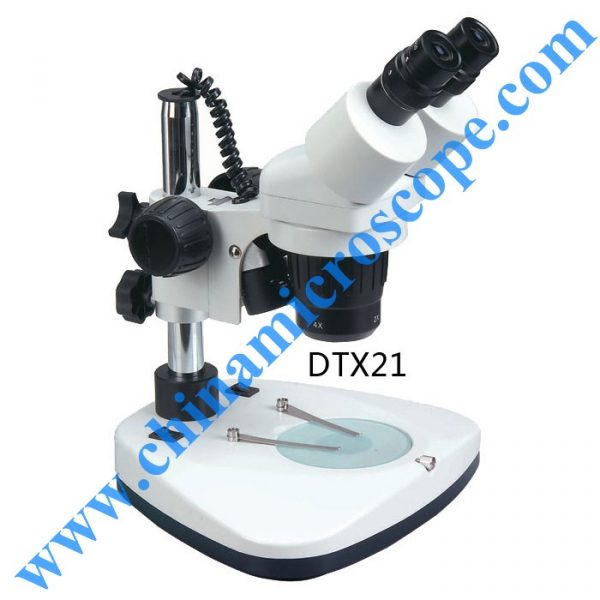

DTX-21 Pillar style Fan-shape plain base with Ø95mm Frosted Glass
Optional accessories：WF5×、SWF10×、WF15×、WF20×Eyepiece；Ring light、Darkfield Attachment、Jewel Tweezer

OPTICAL DATA

Objective Eyepiece
WF5× SWF10× WF15× WF20× Working Distance(mm)
Magnification
Field of view
(mm)		 Magnification
Field of view
(mm)		 Magnification
Field of view
(mm)		 Magnification
Field of view
(mm)
1× 5×   20.0 10×   22.0 15×   15.0  20×   10.0 100
2× 10× 10.0 20×   11.0 30×   7.5 40×   6.5
1× 5×   20.0 10×   22.0 15×   15.0 20×   10.0 100
3× 15× 7.0 15×   7.3 45×   5.0 60×   4.3
2× 10× 10.0 20×   11.0 30×   7.5 40×   6.5 100
4× 20×  5.0 40×   5.5 60×   3.7 80×   3.2
