MIC-P9 offers different types of compensators, it can strengthen the signal of weak birefringent material, make them easier to be seen. At the same time, the compensator can also be used for qualitative measurement, which can determine a variety of horizontal delays.
Strainless optical components makes image more accurate
With the improvement of the polarizing light study, users require higher standard for the accuracy and repeatability of the data. Objectives and condensers play a crucial role in the microscope imaging system.And for a polarizing microscope, high-resolution imaging is required, at the same time, strainless optical components are indispensable, which ensures that the observed birefringence is from the sample rather than the optical element.
Center adjustable sextuple nosepiece
Center adjustable rotatory stage,so that each objective can be adjusted to the center of the light path conveniently and quickly. The objective turntable can be equipped with six objective lenses with different magnification to obtain rich sample information.

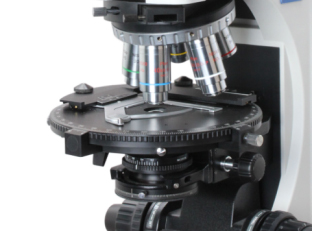

High precision rotary stage
Large table, easy to rotate, 45 ° positioning rotation with center adjustable. The double-layer mechanical moving scale can be easily installed on the rotating stage, which makes the sample moving easier and the micro applications more efficient.

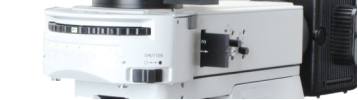

Middle tube lens
Built-in Berger’s mirror makes microscope switch between the positive and conic light, the DIC image can be adjusted accurately and quickly. 0-360 º Rotary analyzer provides sharp contrast image.
Tilting trinocular head
The angel of the head is adjustable, so users can find their own comfortable position for operation. Minimize the fatigue and uncomfortable due to long time working.
Disk type module switching device.
6 modules can be fixed in the microscope at one time. Easy to change and improve your working efficiency.
Professional image analysis software. MIC TECH microscope analysis software can makes obtaining, measurement, disposal of the microscope image so easy, MIC TECH always offers the popular operating systems for our customers.
Multiple viewing methods:
Transmitting light observation: bright field, dark field, phase contrast
Reflecting light observation: bright field, dark field, fluorescent, Polarizing, DIC
|Optical System||Infinite Optical System||●||●||●|
|SW10X/25 with reticle with locking||○||○||○|
|SW10X/25 with cross reticle with locking||○||○||○|
|Viewing head||Seidentopf trinocular 30° inclined Interpupillary 47-78mm||●||●|
|Erog Tilting trinocular head adjustable 0-35°(100/0, 20/80,0/100), Interpupillary 47-78mm||●|
|Nosepiece||Sextuple Nosepiece with DIC slot||●||●||●|
|Condenser||Strain less swing out condenser N.A.0.9/0.25||●||●|
|Illumination||Transmitting Kohler illumination 12V100 halogen lamp||●||●|
|Reflecting Kohler illumination 12V100 halogen lamp||●||●|
|Focusing system||Coaxial focusing system, fine focus moving precision 1um, moving range 35mm, sample space 50mm||●||●||●|
|Objective||Semi-apo strainless infinite plan objectives 4X,10X,20X,40X,60X,100X||●||●||●|
|Stage||High precision round stage, diameter 190mm, center adjustable, 360°, each grid is 1°, vernier grid is 6’， 45° fixed rota-table position,||●||●||●|
|Moving scale||Moving range 30mmx30mm||●||●||●|
|analyzer||0-360°rota-table analyzer, min grid 0.1°||●||●||●|
|Conoscope device||Anascope and Conoscope switchable and focus-able.||●||●||●|
|Light intensity compensator||λ plate (one grade red),1/4λ Retardation Plate,Quartz Wedge||●||●||●|
|Polarizer||Transmitting :360° rotatable, 0° position adjustable||●||●|
|Reflecting: Fixed type||●||●|
|Accessory||Video photography device|
|Different types of filters|
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved the right to make design modification and changes without notice.
